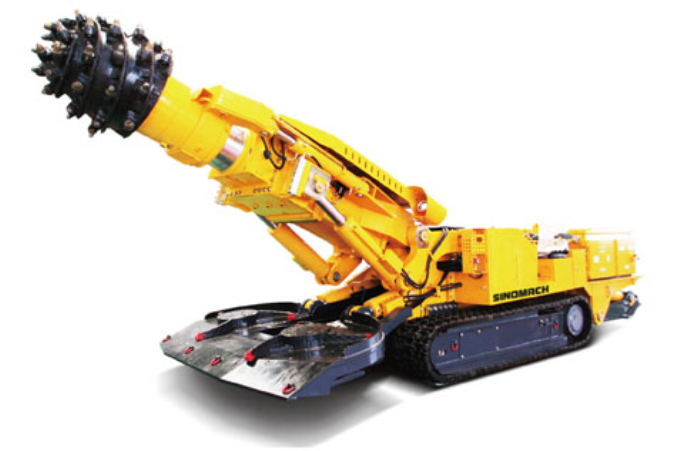

EBZ135/EBZ160/EBZ220
Technical Specification
| model | EBZ135 | EBZ160 | EBZ220 |
| Overall length(m) | 9.1 | 9.42 | 10.4 |
| Overall width(m) | 2.6 | 2.9 | 3.2 |
| Overall height(m) | 1.5 | 1.65 | 1.75 |
| Gross weight(t) | 35 | 43.5 | 63.5 |
| Power feeding voltage(v) | AC1140/660 | AC1140/660 | AC1140 |
| Cutting power(kW) | 135 | 160/110 | 220/132 |
| Total power(kW) | 210 | 250 | 310 |
| Climb angle(°) | ±18 | ±18 | ±18 |
| Depth(mm) | 240 | 310 | 210 |
| Ground clearance(mm) | 200 | 200 | 200 |
| Gantry height/ Portal Frame Height(mm) | 393 | 450 | 450 |
| Tractive force(kN) | ≥175 | ≥240 | ≥367 |
| Cutting hardness(Mpa) | ≤80 | ≤80 | ≤85 |
| Cutterhead revolution(r/min) | 51.7 | 47/24 | 46/23 |
| Delivered payload capablity(m³/h) | 250 | 252 | 258 |
| Ground specific pressure(Mpa) | 0.13 | 0.15 | 0.16 |
| Track width(mm) | 520 | 520 | 600 |
| Power of hydraulic pump station(kW) | 75 | 90 | 90 |
| No-load interated noise(dB·A) | ＜95 | ＜95 | ＜95 |
| Located cutting height(m) | 3.9 | 4.8 | 5.4 |
| Located cutting width(m) | 5.4 | 5.1 | 5.6 |
| Located cutting length(m³) | 21 | 24.5 | 25.2 |
