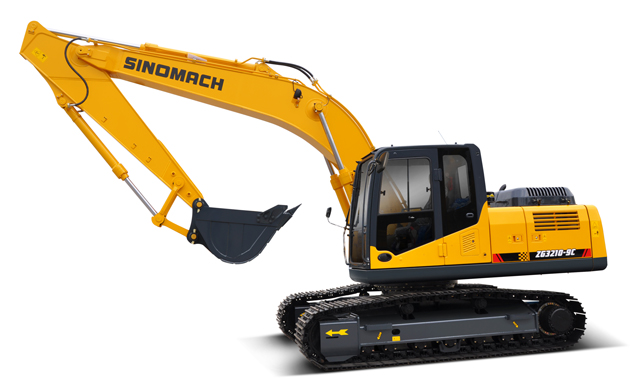

ZG3210-9C



Technical Specification

model ZG3210-9C
Specifications
Operating weight 21000kg
Standard bucket capacity  0.91m³
Arm length 2910mm
Boom length 5680mm
Engine
Model CUMMINS 6BTAA5.9-C150
Type  Turbo-charged with inter-cooled
Power 112kW/1950rpm
Max.torque 614N.m at 1500rpm
No.of cylinders 6
Displacement 5883cc
Hydraulic system
Main pump
Type Variable displacement axial piston pumps
Max.displacement   2x111cc/rev
Max. Flow Rate 2x218L/min
Working pressure 31.4/34.3Mpa
Hydraulic motor
Swing Fixed displacement axial piston motor
Trave Variale displacement axial piton motors
 Performance
Swing speed 12rpm
Max. travel speed H/L 5.4/3.0km/h
Gradeability 35°
Max. digging force of bucket  137kN
Max.digging force of arm 102kN
Ground pressure 47kPa
Tank capacity
Fuel tank capcity 400L
Hydraulic tank capacity  210L
